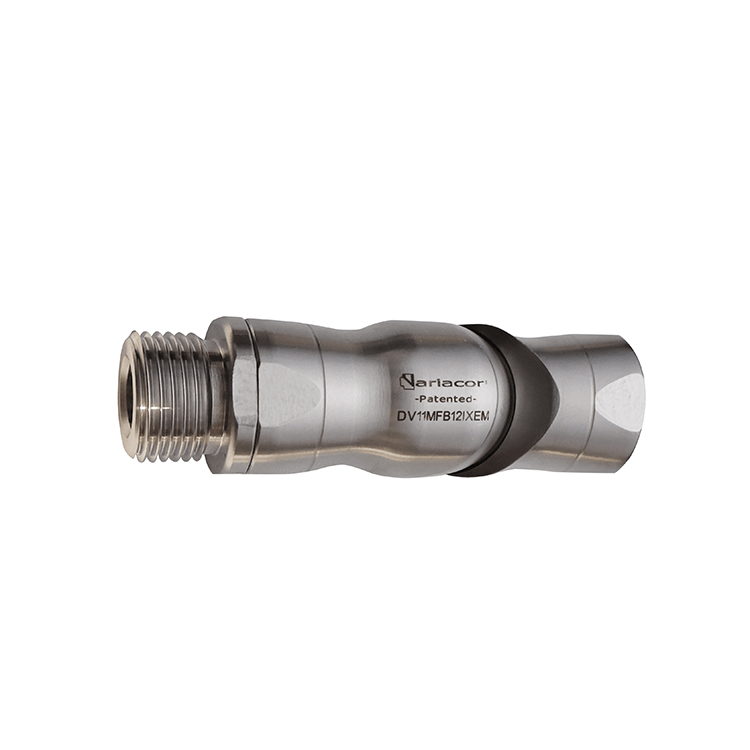

Swivel Fitting 360 degrees 11mm wide - M 1/2" bsp - FM 1/2" bsp - Stainless Steel (for medium pressure)

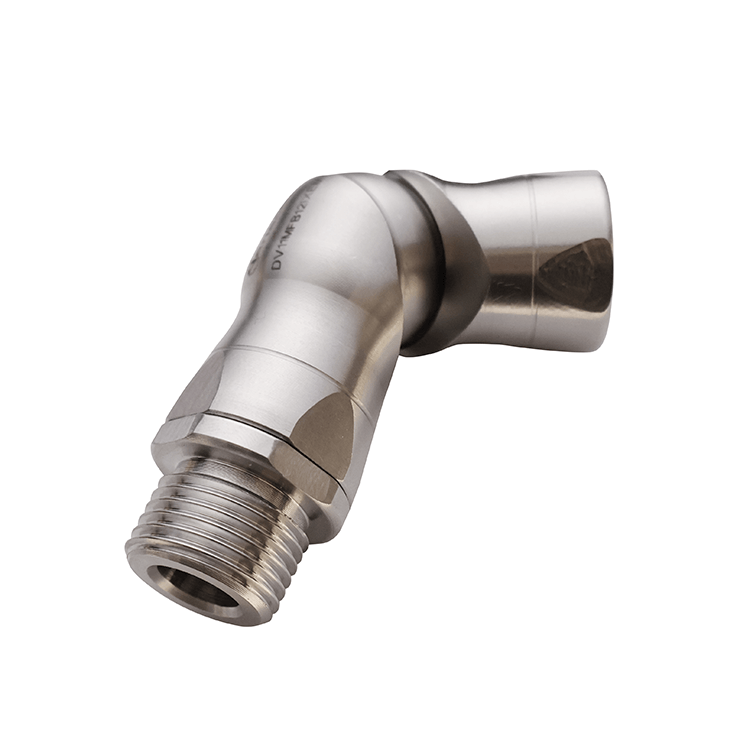

Swivel Fitting 360 degrees 11mm wide - M 1/2" bsp - FM 1/2" bsp - Stainless Steel (for medium pressure) - Image 2

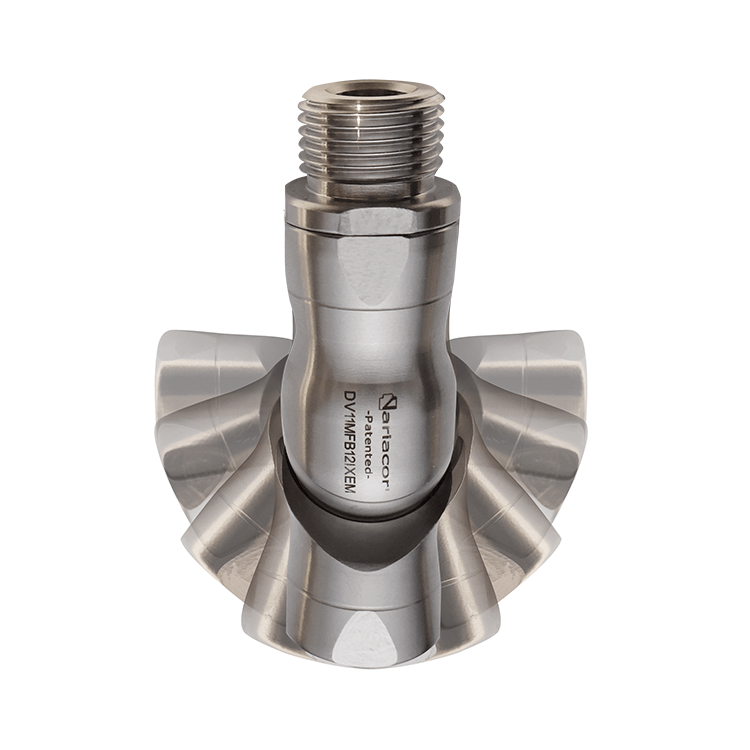

Swivel Fitting 360 degrees 11mm wide - M 1/2" bsp - FM 1/2" bsp - Stainless Steel (for medium pressure) - Image 3

Swivel Fitting 360 degrees 11mm wide – M 1/2″ bsp – FM 1/2″ bsp – Stainless Steel (for medium pressure)

360º Freely Rotatable Stainless Steel Fitting allows the gun and hose connection to move freely for increased operator ease and reduced RSI. 1/2″ BSP M – 1/2″ BSP Fm

SKU: 8720

Price per item inc. VAT

£1.00
Need help?
Contact the team

This unique 360-degree ultimate swivel fitting is a multi-directional rotary connector designed to provide free orientation for hoses and tools in industrial pneumatic, hydraulic, and fluid transfer systems. Its patented design utilizes two independent rotatable axes to dramatically improve tool maneuverability, prevent hose kinking, and reduce operator fatigue.

Clearance
11 mm
Weight
123 g
Maximum Temperature
90°C
Maximum Pressure
40 bar
Male Connection
BSP ½"
Female Connection
BSP ½"
Dimensions
(A) Ø29.5 mm / (B) 82 mm
Swivel Fitting 360 degrees 11mm wide – M 1/2″ bsp – FM 1/2″ bsp – Stainless Steel (for medium pressure) Specification Sheet
Swivel Fitting 360 degrees 11mm wide – M 1/2″ bsp – FM 1/2″ bsp – Stainless Steel (for medium pressure) Specification Sheet, featuring materials, technical details, and product codes.
