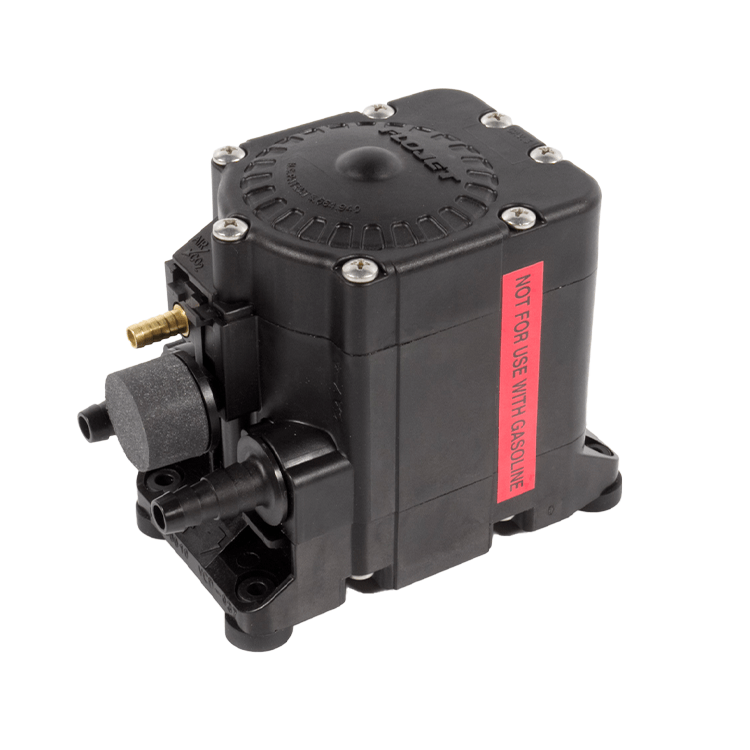

TechniFoamer Air Diaphragm Pump

  • Brand: Technifoamer
  • Parts: TechniFoamer

An easy-to-install replacement component for the Technifoamer system that delivers a reliable, consistent flow of cleaning chemicals.

Select Product Options

Select
SKU: P-9129

The TechniFoamer Air Diaphragm Pump is available with either a Viton or Santoprene diaphragm and hose barb fittings for the TechniFoamer’s chemical delivery system, providing a reliable, consistent flow of cleaning chemical concentrate to the foam generation unit. Supplied complete with hose barb fittings for quick, tool-free installation, this pump is designed for straightforward replacement to minimise system downtime. Its proven reliability and broad chemical compatibility help maintain consistent foam concentration and effective cleaning performance, supporting compliance with food safety standards and internal hygiene audit programmes.

TechniFoamer Air Pump Specification Sheet includes features, sizing, technical details and product codes.
Min. Liquid Temp
4.4ºC
Max. Liquid Temp
48.9ºC
Priming Dry
4.5m
Priming Wet
6.1m
Flow Rates
up to 18.9 L/Min
Pressure
1.4 - 6.9 Bar
Santoprene Suitable For
Potable Water, Acids, Alkaline, Soaps, Alcohols, Ketones
Viton Suitable For
Oils, Solvants, D-Limonene, Aromatic & Halogenated Hydrocarbons, Acids
