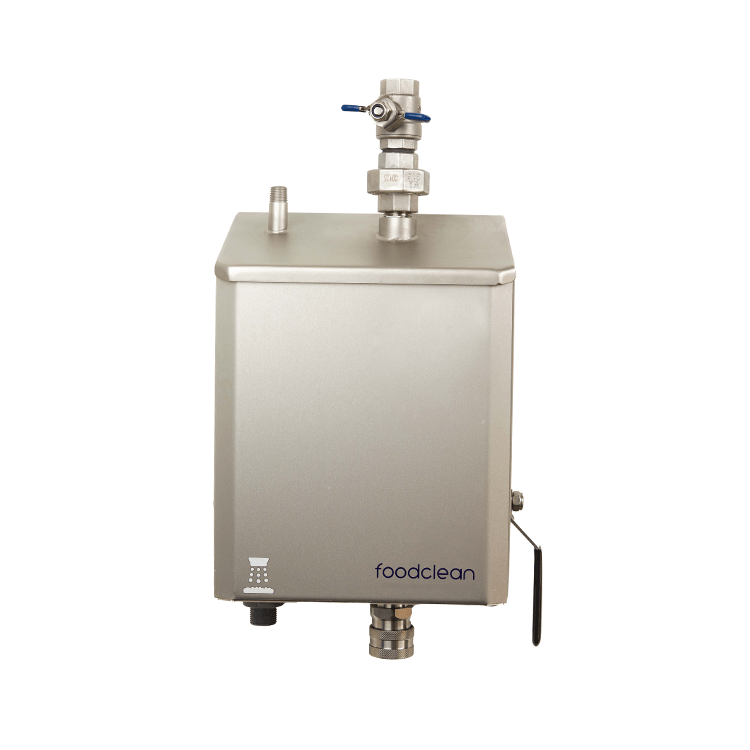

SatPoint Foam and Rinse Satellite Station – High Pressure

SKU: 1950/HP

Price per item inc. VAT

£1,739.89

The Foodclean SatPoint is an extremely heavy-duty, stainless steel and hygienic decentralised foam and rinse satellite station designed for use on medium-pressure washdown systems operating at 40 bar.

The unit incorporates a dosage tip for chemical dosing, a heavy-duty stainless steel injector, a compressed air regulator and non-return valves, all mounted on a stainless steel back plate. It is protected by a removable stainless steel front cover and fitted with stainless steel chemical pickup tubes.

Inlet Pressure Range
10 - 50 Bar
Chemical Dosing
1-6%
Maximum Temperature
70ºC
Maximum Air Pressure
10 Bar
Air Consumption
150L/min
Number of Users
1
Water Inlet/Outlet
3/8"
1950 SatPoint Satellite Specification Sheet, featuring materials, technical details, and product codes.
